Valpes ER PREMIUM
RX Code: AAE
The ER Premier is Valpes’ standard electric actuator designed for straightforward on/off or 3-point control. It combines durability with ease of use, making it ideal for general-purpose industrial valve automation.
Features:
- On/off or 3-point modulating control
- Multi-voltage input (24 V / 100–240 V AC/DC)
- Manual override with secured access
- IP65 protection, S4 30% duty cycle
Specifications:
Sizes | DN 8 to DN 150, depending on the type of valve |
Voltage | 24V 50/60Hz (24V DC) Multivolt electric actuator: 100V to 240V 50/60Hz (100V to 350V DC) |
Temp. range | -10°C to 55°C |

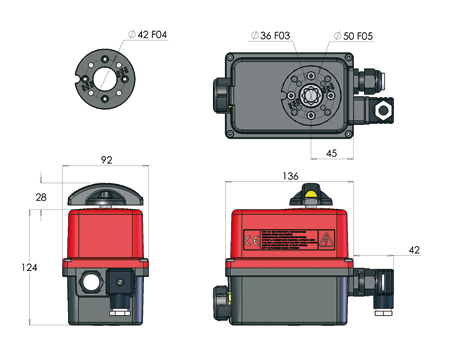

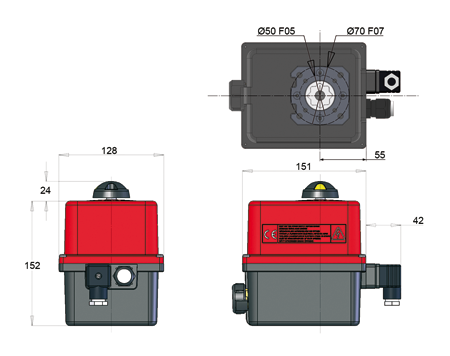

Connections | – F03-F04-F05 for ER20 – F05-F07 for ER35/60/100 |
Material | – Housing and cover: Polyamide PA6.6 UL94VO |
Operation | Quarter turn (90°) |
Certificates | CE, GOST-R |
